Architeckt Round Thermostatic Dual Bar Mixer Shower
Essentials Basin Mixer Tap
Essentials Bath Mixer Tap
Architeckt Flip Top Basin Waste - Slotted - For Basin with Overflow Hole
Quick Clac Pop up Bath Waste

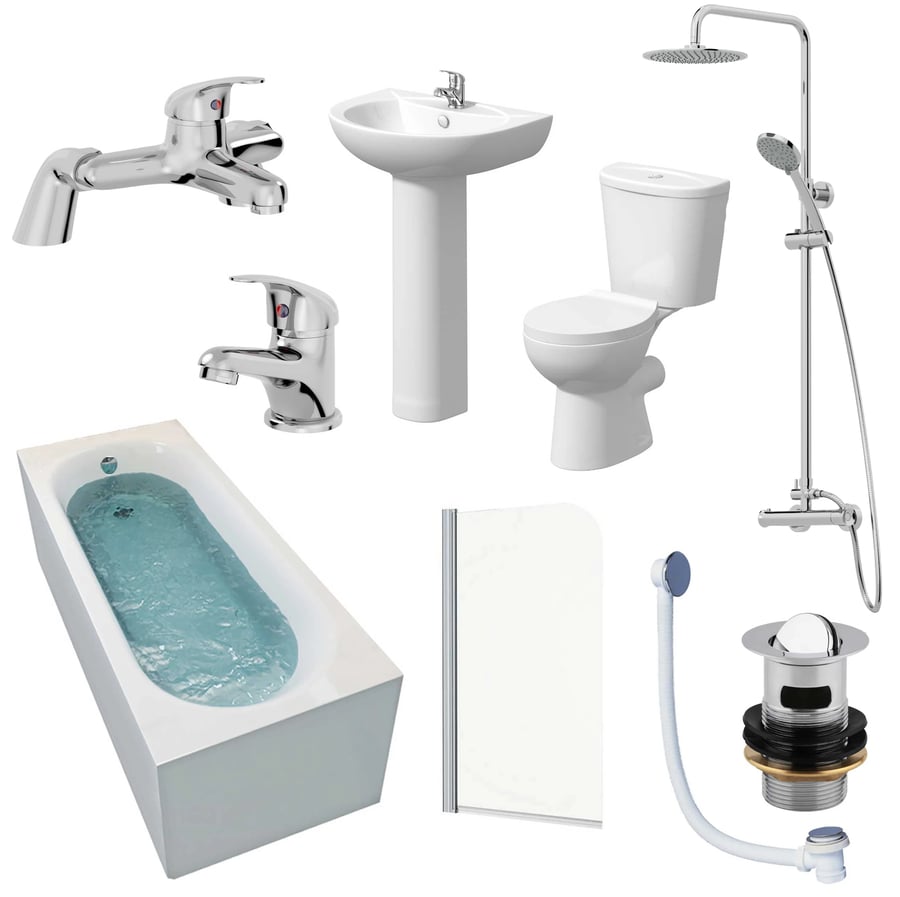

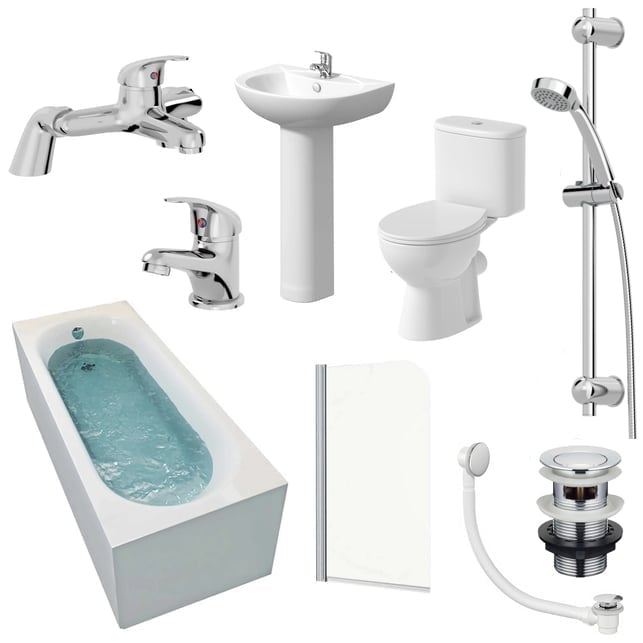

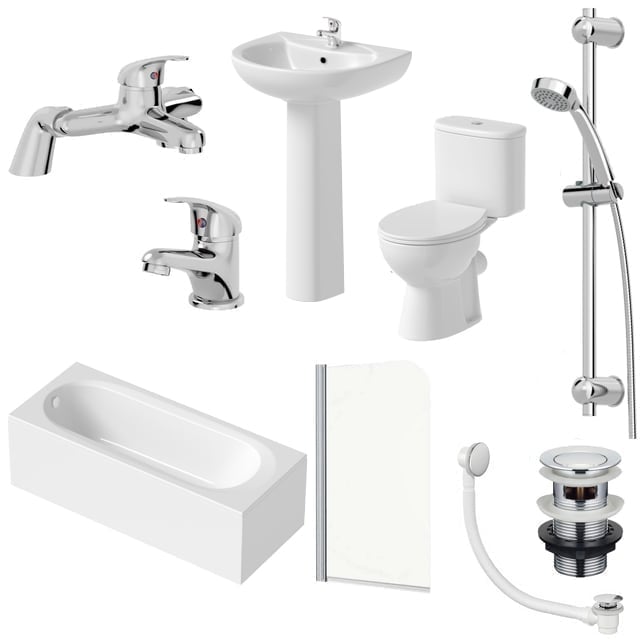

The Essentials Complete Bathroom Suite Bundle includes a bath, toilet, a full pedestal basin, plus a thermostatic shower, shower screen, taps, and waste.
We pride ourselves on our ability to mix the finest bathroom products with stylish and functional accessories to produce a bathroom suite that’s unrivalled. With the Essentials Complete Bathroom Suite, you’ll receive everything you need to get the perfect bathroom, including a gorgeous single ended bath, a close coupled toilet, a classic full pedestal basin, and all of the complementary brassware to go along with it, including taps and a waste.
Contemporary Single-Ended Shower Bath - 1700mm
Stylish Single Ended Bath
A truly versatile design, this single-ended bath is the perfect choice for a relaxing soak after a long day. Boasting a modern design with a white finish, this single ended bath is made from scratch-resistant and UV-resistant Lucite sheet acrylic and comes pre-drilled for a centre waste and overflow.
Sleek Curved Bath Shower Screen Included
Gone are the days of sticking to a shower curtain. With this curved bath screen, you can enjoy a relaxing shower over your bath without water splashing on the floor. It’s beautifully designed to follow the rim of the bath and saves your floor from a barrage of spray. They’re hygienic because they’re simple to wipe down and clean and they look great. What's more, this screen includes reversible fixings and 6mm toughened safety glass.
Made with genuine Lucite acrylic
Fully encapsulated 18mm baseboard
Comes pre-drilled for a centre waste and overflow
135 litre capacity
Leg set included
1400mm tall curved bath shower screen & side panel included (note: the side panel will appear curved until trimmed and fitted)
Essentials Close Coupled Toilet & Soft Close Seat
Dual Flush Cisterns
Affordable can still be clever, especially when it comes to the Essentials cistern. It contains an internal overflow meaning that should water overflow, it will simply run back down into the pan, saving the need for an external overflow. It also has an inlet positioned on both the left and right-hand side for convenience during installation and a fantastic dual flush mechanism. The dual flush will allow you to save water by choosing to use either a 3-litre eco flush or a larger 6-litre flush.
Soft Close Toilet Seat
The toilet seat supplied is very comfortable and incredibly smooth. It blends seamlessly with the rest of the pan and like the toilet, it is finished in a crisp, neutral white. It features a wonderfully smooth soft close mechanism and mounts easily to the toilet pan, so you can be sitting snugly while pondering the day ahead.
Perfect for en-suites and cloakrooms
Stylish gloss white finish
Vitreous china manufacturing
Please note: pan to floor fixings are not included.

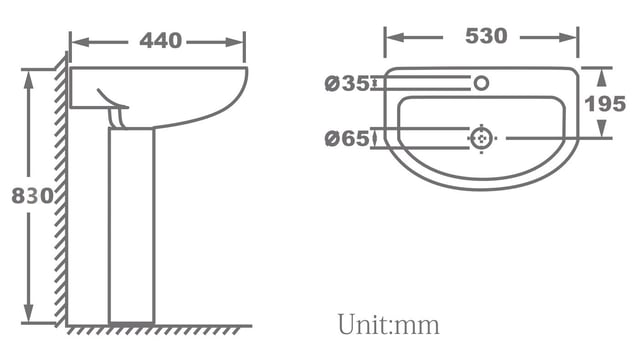

Essentials Budget Full Pedestal Basin - 545mm
Single Tap Hole Basin
Get yourself the perfect complement for any modern bathroom with the Essentials single tap hole wash basin. It’s got ample space for day to day cleaning and features a single, centre-mounted tap hole for use with a standard sized basin mixer. The top of the basin is flat too to allow space for soap or glass tumblers.
Freestanding Full Pedestal
Included within the basin package is the full length pedestal. It helps to support the basin's weight while adding extra décor to your bathroom to cover any pipework from the taps.
Made from vitreous china
Crisp gloss white finish
Easy to clean surface
Architeckt Thermostatic Mixer Shower
Large 225mm Round Drencher Head & Handset
Most showers are supplied with a standard-sized shower head which is designed to simply get the job done. Your shower doesn’t have to be like that and won’t, with this large 225mm round drencher head. It’s ideal for getting that downpour feeling but with all the luxuries of a hot shower. This shower also comes with a convenient handset that features a classically designed round head, providing ample water flow with a stylish aesthetic.
Precise Thermostatic Temperature Control
Standard showers can have hot temperature spikes when others in the house turn on taps or flush the toilet.
Thermostatic control means that this shower will hold its temperature steady at all times. It dynamically adjusts the hot and cold water offsetting the everyday changes in water pressure experienced in most family homes.
Modern design with a classic chrome finish
Thermostatic temperature control
Two outlet bar shower
Stylish round bar valve
225mm drencher head
Adjustable handset
Technical Information:
Shower technical information:
Pipe Centres: 150mm +/- 18mm
Inlet Connection Size: G1/2" & G3/4"
Minimum Bar Pressure: 0.5 Bar
Maximum Bar Pressure: 5.0 Bar
Tube Diameter: 24mm / 21.5mm
Shower Hose Length: 1500mm
Shower Arm Projection: 531mm
Shower Top To Bottom Adjustability: 870mm – 1240mm
Overhead shower flow rates (l/min):
0.5 Bar: 3.6 Litres
1.0 Bar: 5.5 Litres
3.0 Bar: 9.9 Litres
5.0 Bar: 12.9 Litres
Shower handset flow rates (l/min):
0.5 Bar: 3.4 Litres
1.0 Bar: 5.0 Litres
3.0 Bar: 8.9 Litres
5.0 Bar: 11.7 Litres
Bath shower tap technical information:
Inlet Connection Size: G3/4
Shower Handset Hose Size: 150cm
Durable solid brass build
Ceramic cartridge
Bath shower tap flow rates (l/min):
0.5 bar: 9.4
1 bar: 13
3 bar: 22.2
Basin tap technical information:
Inlet Connection Size: F1/2*M10*1*350mm
Flexible tails included
Durable solid brass build
Ceramic cartridge
Basin tap flow rates (l/min):
0.5 bar: 8.8
1 bar: 12.4
3 bar: 21.2
Downloadable Documents
Back
Technical Drawings
Back
Specifications
Back
Essentials Bathroom Suite with 1700mm Single Ended Bath, Toilet, Basin, Taps, Screen, Shower & Waste Specifications
Suite Type
Shower Bath Suites
Style
Modern
Bath Type
Single Ended Bath
Bath Length
1700
mm
Bath Width
700
mm
Enclosure Type
None
Toilet Type
Close Coupled
Toilet Projection
420
mm
Toilet Height
385
mm
Toilet Width
360
mm
Soft Close Seat
Yes
Basin Type
Full Pedestal
Basin Height
820
mm
Basin Projection
445
mm
Basin Width
545
mm
Basin Tap Holes
1
Bath Panel Included
Side Panel
Bath Screen Included
Yes
Collection
Essentials
Essentials Bathroom Suite with 1700mm Single Ended Bath, Toilet, Basin, Taps, Screen, Shower & Waste
ESSTSET41
Product Code: ESSTSET41
£499.97(Inc. VAT)
Stock status:
Expected - 21/08/24
FREE DELIVERY
*
Pallet Delivery - FREE
Quick and convenient delivery, 6 days a week, including next-day options. * Standard Post Code exclusions apply.
